Castings, forgings and heavy replacement components

SBCCO-China supplies cast and forged components for mills, crushers, process equipment and industrial structures. The scope includes mill heads, girth gears, pinions, shafts, housings and wear-resistant castings. Material, heat treatment, machining and inspection are specified together, so that the component is purchased against a complete drawing and acceptance basis.

01

Supply scope

A casting route, a forging route and a fabricated blank are alternatives with different technical requirements. The drawing and service decide the route; an apparently similar material name does not establish equivalence. For large replacements, the review must also address mating geometry, lifting, shipment and installation sequence. Historical component weights are useful examples, but do not define a universal capacity limit.

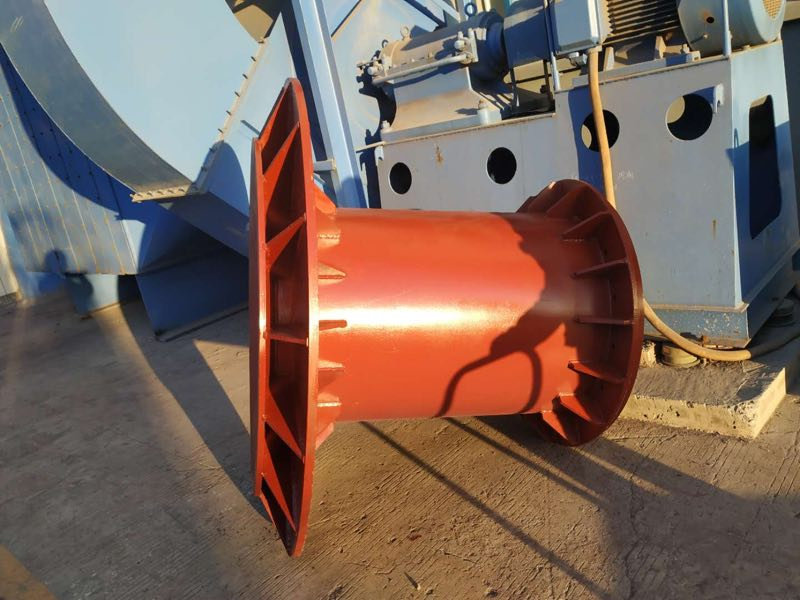

Mill heads and trunnions

Replacement components supplied as cast, rough-machined or finish-machined to the agreed drawing, with critical interfaces identified before production.

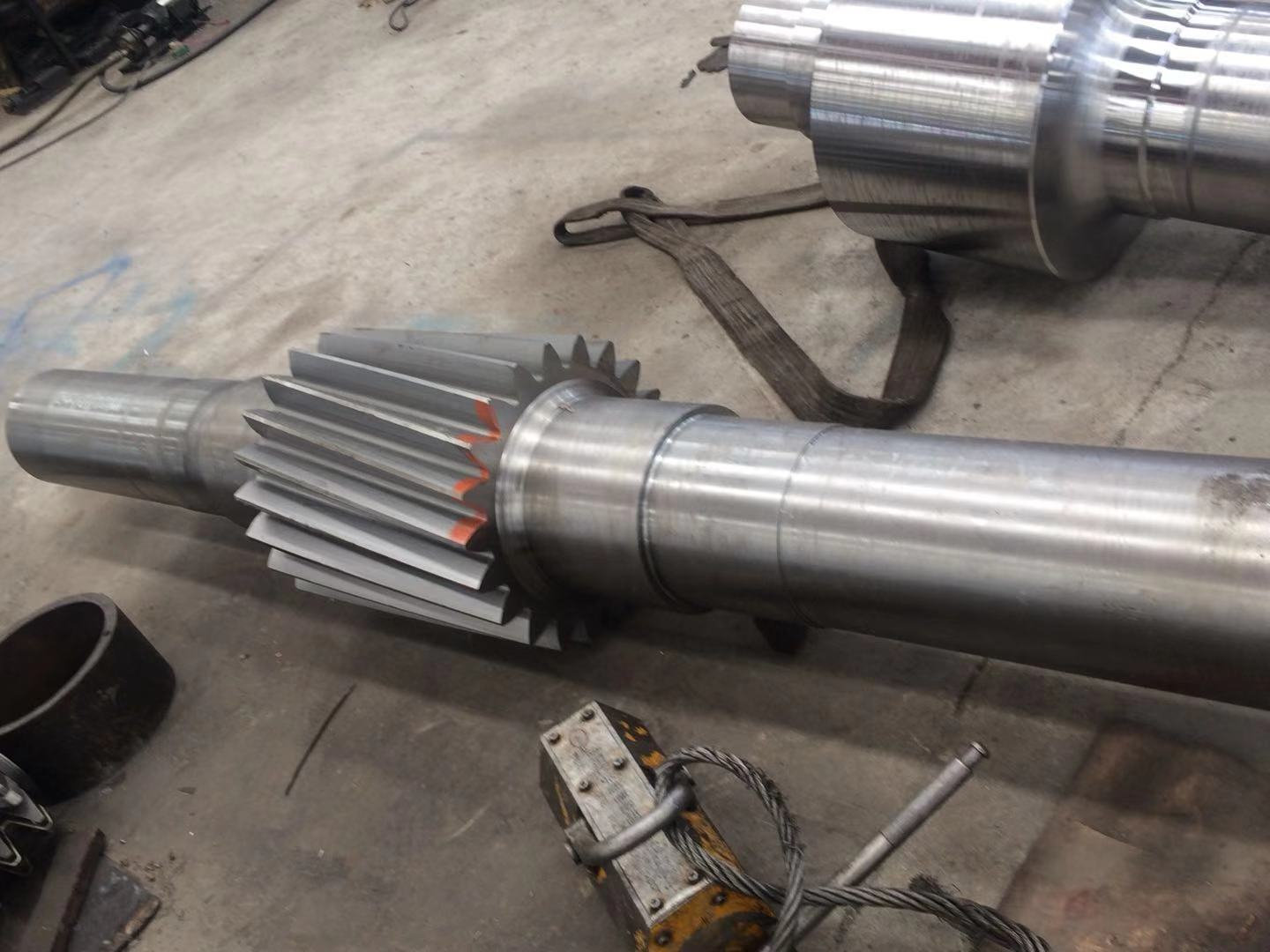

Girth gears and pinions

Gear blanks, finished gears and forged pinion shafts, with material, heat treatment and tooth inspection defined for the mating drive.

Crusher shafts and housings

Main shafts, shells, spiders and bushings for replacement duties. Fit, clearances and required examination are tied to the equipment drawing.

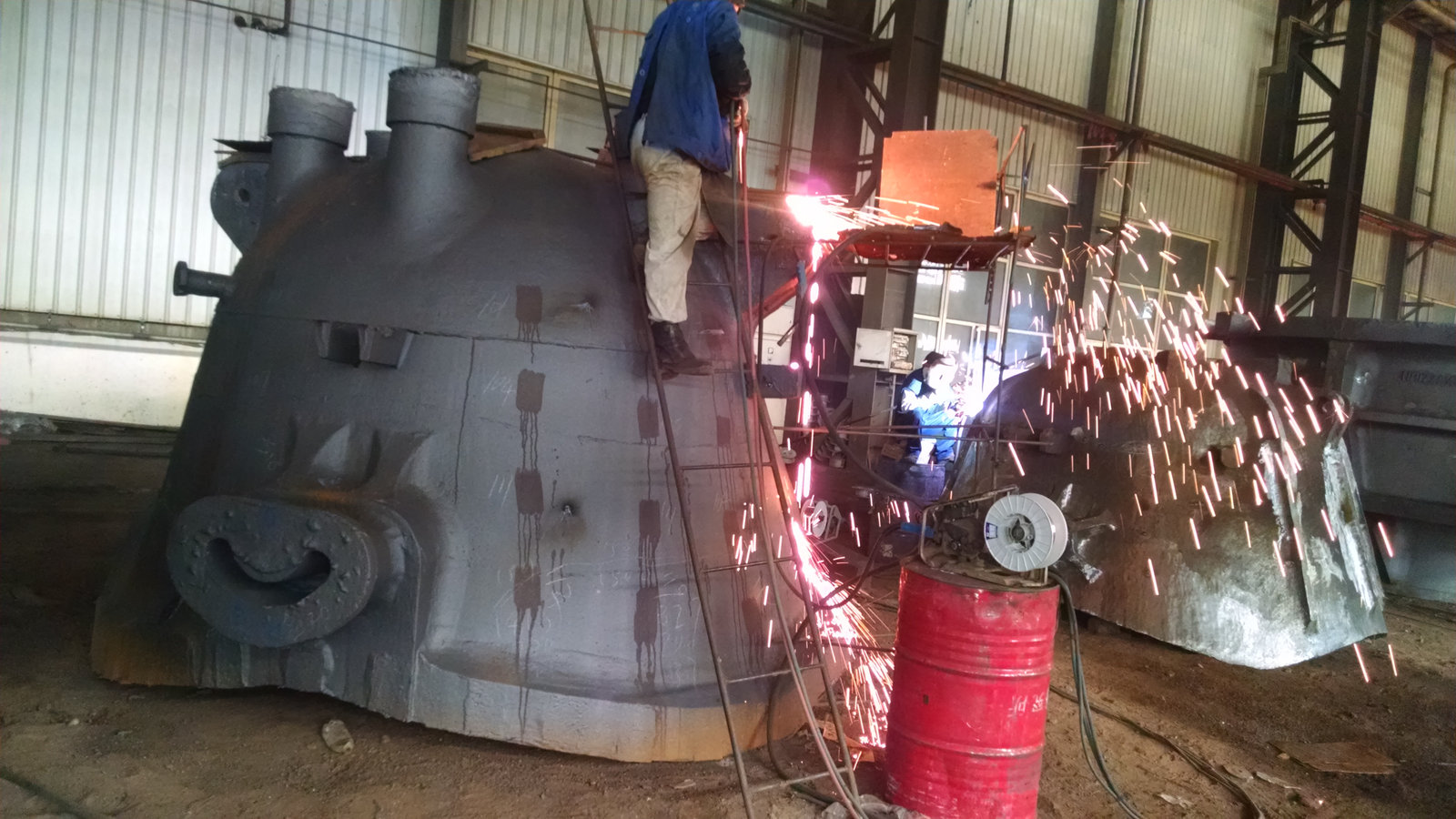

Wear and specialty castings

Manganese, high-chromium, alloy-steel and precision-casting options, selected against impact, abrasion, corrosion and the required manufacturing route.

02

Documented specifications and selection basis

These are documented product ranges and project examples. They help define an enquiry; the selected equipment is confirmed against its own duty, drawings and acceptance requirements. A historical shipment is not a statement of a shop’s current maximum capacity.

ItemSpecification and scope
Girth gear material example34CrNiMo6 cast alloy steel is listed in the current replacement-parts presentation; confirm the specified grade for each drawing.
Pinion material example18CrNiMo7-6 forged alloy steel is listed; heat-treatment route and acceptance remain drawing-specific.
Wear casting rangeMn13 to Mn21Cr2 manganese grades, Cr20 / Cr25 white iron and martensitic or pearlitic steel are documented options.
Recorded heavy componentOne mill-cover shipment at 15,600 kg net; a project example, not a stated casting or machining maximum.
Dimensional acceptanceBores, seats, journals, bolt patterns and gear geometry follow the approved drawing and measurement plan.

03

Service conditions and applicable standards

Begin with the required manufacturing route and the material specification, including any permitted alternatives. The heat-treatment condition must match the property requirements; values from different routes cannot be combined into a new acceptance basis. Identify which surfaces are rough, finish-machined or left for site machining. For a gear set, agree how tooth geometry, runout, contact and the mating part will be assessed before authorizing production.

Material standards and drawing tolerances must be named separately. ASTM A128/A128M and A532/A532M are relevant to the documented manganese-steel and abrasion-resistant iron options. Other cast or forged alloys require their own specified standard and grade. The inspection plan identifies the examination method, coverage, acceptance level and required records; listing a test method alone is not a complete acceptance requirement.

04

Inspection and release documents

The inspection plan turns the purchase specification into manufacturing checkpoints. Before production, identify the drawing revision, material requirements, acceptance limits and required records. Separate mandatory hold points from progress observations so that an inspection visit happens while the work can still be checked. If the order includes a third-party witness, the attendance and release arrangements belong in the schedule.

For this product line, the review focuses on material traceability, heat-treatment condition, agreed chemistry and mechanical tests, dimensional records and examination coverage at the critical sections. The final document list is agreed with the order: material records, dimensional reports, applicable fabrication and test records, release information and packing identification. Changes or deviations are resolved against the approved specification before acceptance, with the responsible engineer involved where required.

05

Project references with measured scope

15,600 kg mill cover shipped to Chile

SBC’s packing list dated 15 January 2019 records one mill cover shipped to Chile through Wiedco. The listed net weight is 15,600 kg, gross weight 17,100 kg and package size 3.5 × 3.5 × 1.55 m. This is an actual shipment reference for a replacement mill component. Package size does not establish the casting’s finished diameter, and the record is not a maximum foundry or machining capacity.

View this project reference

1,893 kg mill girth gear for Chuquicamata

SBC’s packing record for a Marcy mill girth gear identifies the destination as Codelco Chuquicamata through Wiedco. It records one gear at 1,893 kg net and 1,910 kg gross, packed at 2,900 × 1,470 × 700 mm. These are shipment figures. Gear accuracy, tooth geometry, material and heat treatment for any replacement must be established from that replacement’s approved drawings and acceptance requirements.

View this project reference

06

What to send for a quotation

Send part drawing and revision, casting or forging route, material grade, heat-treatment condition, finished weight if known, critical fits, mating-part information, test coverage and documentation requirements. Include quantities, the required date at site, the destination port or plant and the preferred delivery terms. If you are replacing existing equipment, add photographs showing connections, access and the failure or wear pattern. Mark dimensions that have been measured on site and identify any values still awaiting confirmation.

For a comparable quotation, define the battery limits: equipment, bought-out components, supports, drawings, inspection, packing and transport. Ask for technical exceptions and exclusions alongside the price. This makes it possible to compare proposals on the same scope and prevents an omitted inspection, connection or document from becoming a site problem. A preliminary budget can proceed with stated assumptions; manufacture follows the approved final requirements.

Send your drawing and service conditions

07

Buyer questions

Can one material be substituted for another named on a drawing?

Yes, as a proposal for engineering agreement. Compare composition, manufacturing route, heat treatment, properties and the required tests. An equivalent name or a hardness conversion alone is insufficient. Approved alternatives and any deviations should be recorded before the order is released for manufacture.

What information do you need to quote?

Send part drawing and revision, casting or forging route, material grade, heat-treatment condition, finished weight if known, critical fits, mating-part information, test coverage and documentation requirements. Include the required delivery date, destination and inspection requirements. Identify which information is preliminary and which drawing is approved. We can then return a scoped proposal with technical assumptions, exclusions, documentation and the proposed delivery basis, rather than a price based only on a product name.

How is the inspection scope agreed?

Use an item-specific inspection and test plan. For this equipment it should address material traceability, heat-treatment condition, agreed chemistry and mechanical tests, dimensional records and examination coverage at the critical sections. Identify hold and witness points before production and link the final records to the equipment marks. Where independent inspection is required, agree the inspector and attendance scope before the relevant manufacturing stage.

Can you use the material or standard named in our specification?

Yes, subject to review of the actual item and manufacturing route. Name the standard and edition, material grade, required condition and acceptance criteria in the enquiry. If an alternative is proposed, the difference is stated for agreement before manufacture. Material equivalence, equipment design and manufacturer certification are separate questions and should be resolved separately.

What is the lead time and is the equipment in stock?

Delivery is quoted for the particular order. The schedule depends on drawing approval, material availability, manufacturing, inspection, packing and transport. Give the required site date and identify shutdown constraints so the proposal can separate the production and shipping stages. The examples on this page describe supply capability and past work; they are not an offer of stock or a fixed catalogue lead time.

Can you coordinate packing and shipment to our site?

Yes, with the shipping scope and destination agreed in the order. Confirm package dimensions and weights, lifting arrangements, preservation, unloading access and any assembly needed after delivery. Large equipment may travel in sections or require a special shipping arrangement. Packing dimensions and gross weights are identified separately from the dimensions and net weight of the equipment.

Can I use a past project as the specification for a new order?

Use the reference to identify comparable equipment, then specify the new duty. A recorded quantity, capacity or shipping weight applies to that project and is not a universal operating limit. Where a reference comes from our sister company, the attribution appears beside the case. Send your current operating conditions and interfaces so the new proposal can establish the correct construction and acceptance basis.
