Steel tanks, heat exchangers and process equipment

SBCCO-China supplies steel tanks, pressure vessels, heat exchangers, replacement tube bundles, piping and fabricated process equipment from China. The project specifies the design duty, material, construction code and inspection requirements. Supply can cover an individual replacement bundle or a coordinated equipment package with manufacturing records and export arrangements.

01

Supply scope

Pressure containment, heat transfer and site fit are separate responsibilities. A replacement bundle needs reliable exchanger interfaces even when the process duty is unchanged. A new vessel needs a design basis, not just an outline sketch. The purchase scope should state who supplies calculations, who approves the drawings, what code documentation is required and which inspections must be witnessed before shipment.

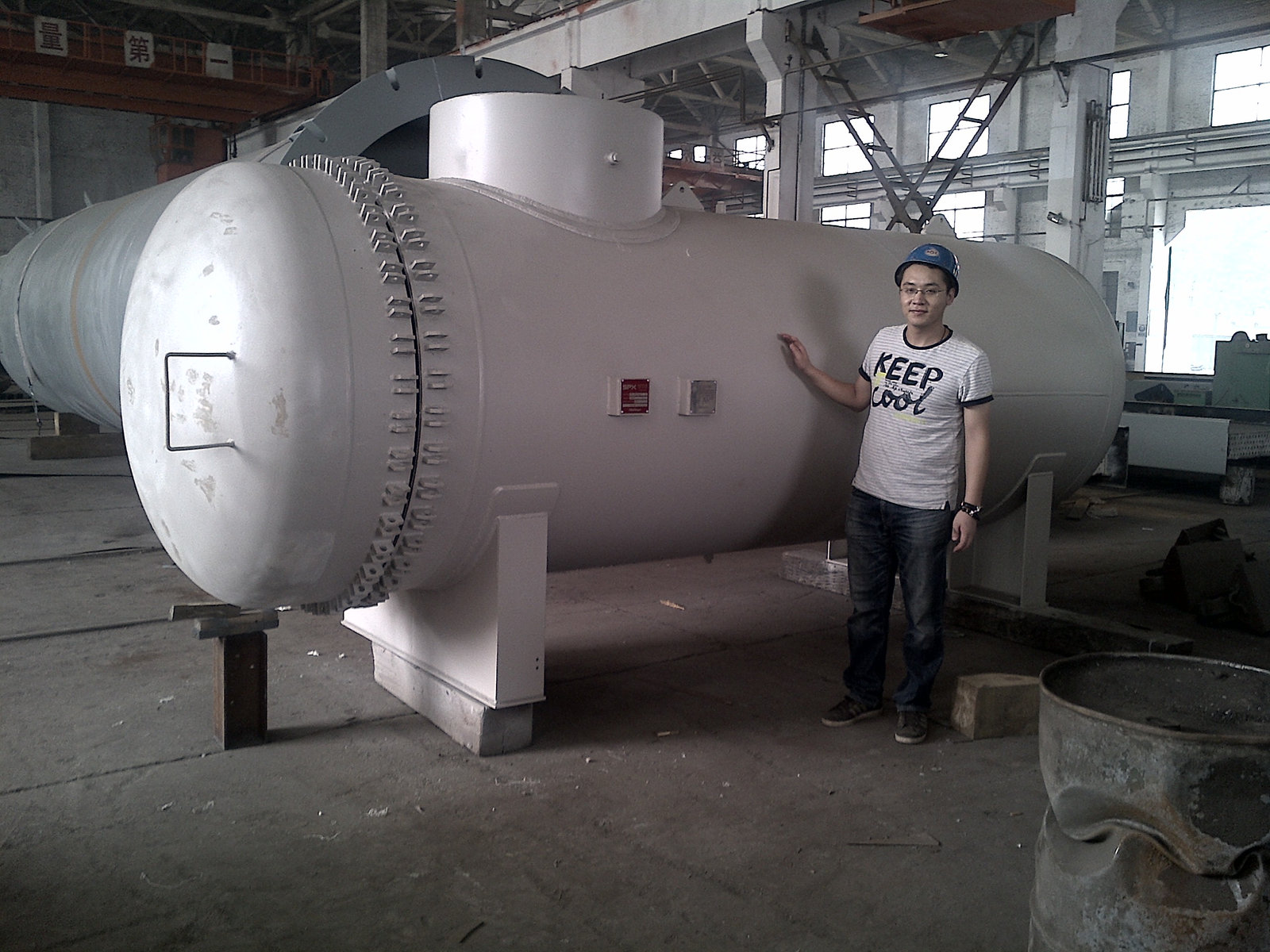

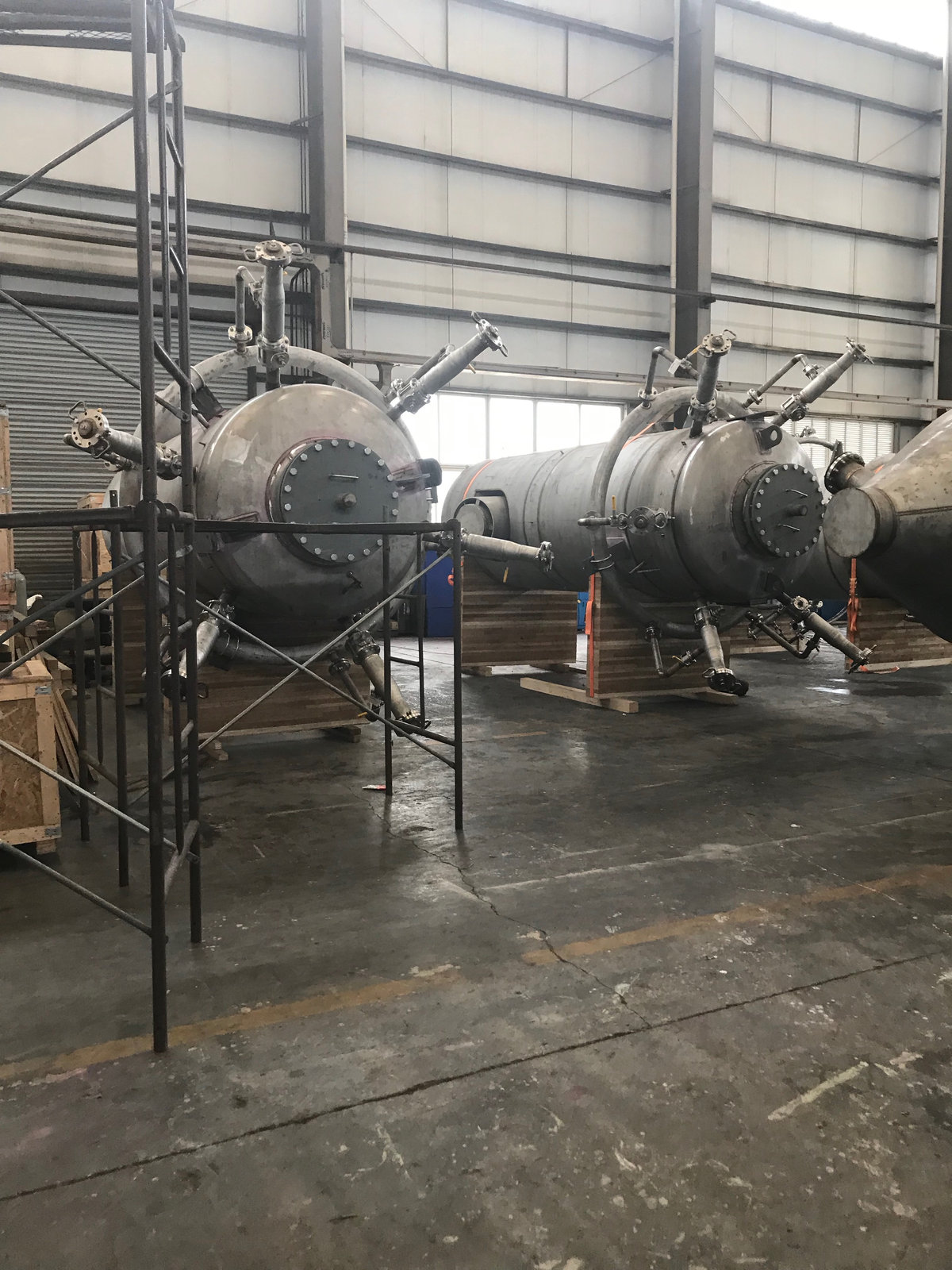

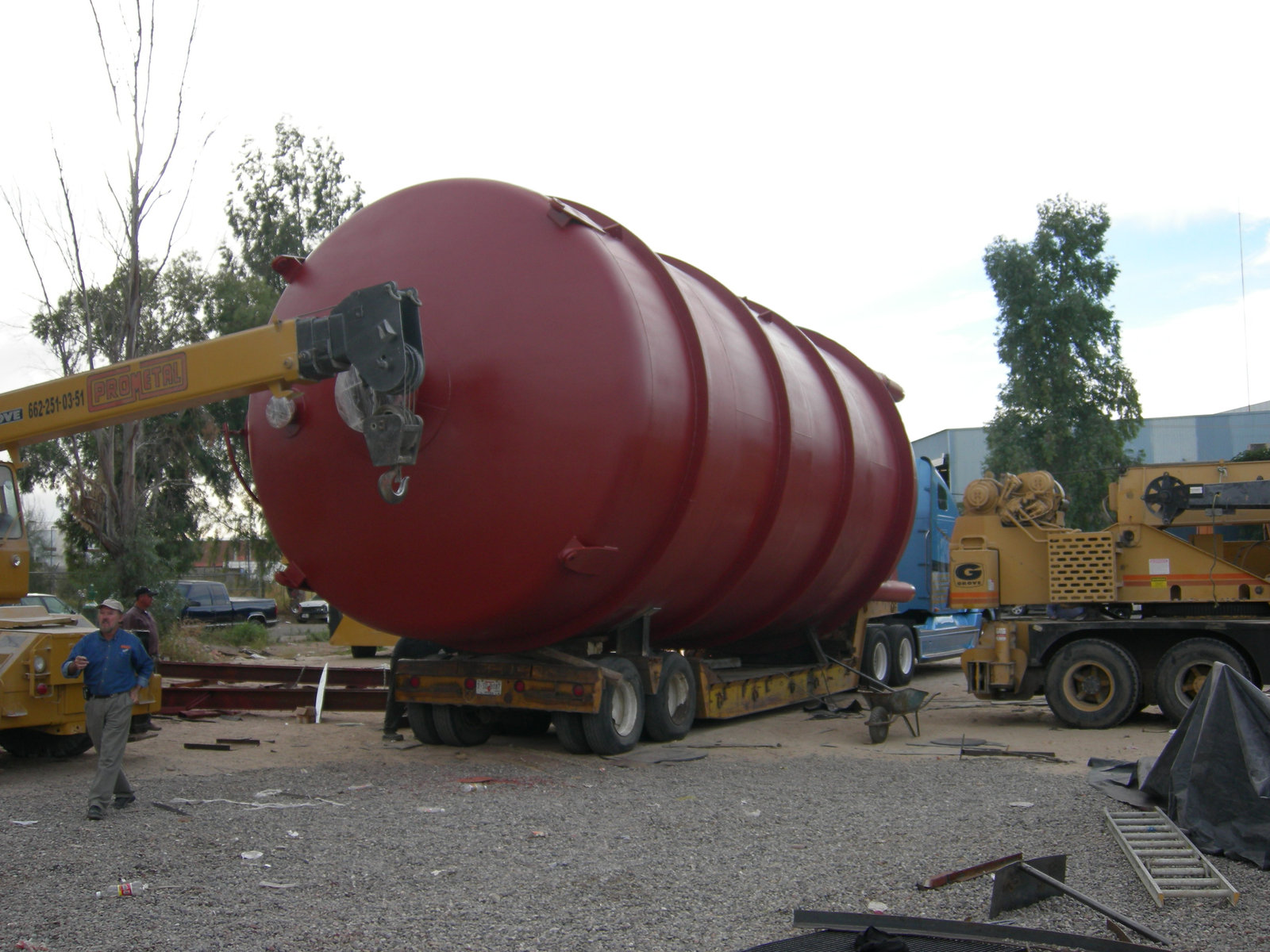

Storage and process vessels

Carbon and stainless steel tanks, receivers and process vessels, with support details, nozzles, internals and access requirements established in the equipment specification.

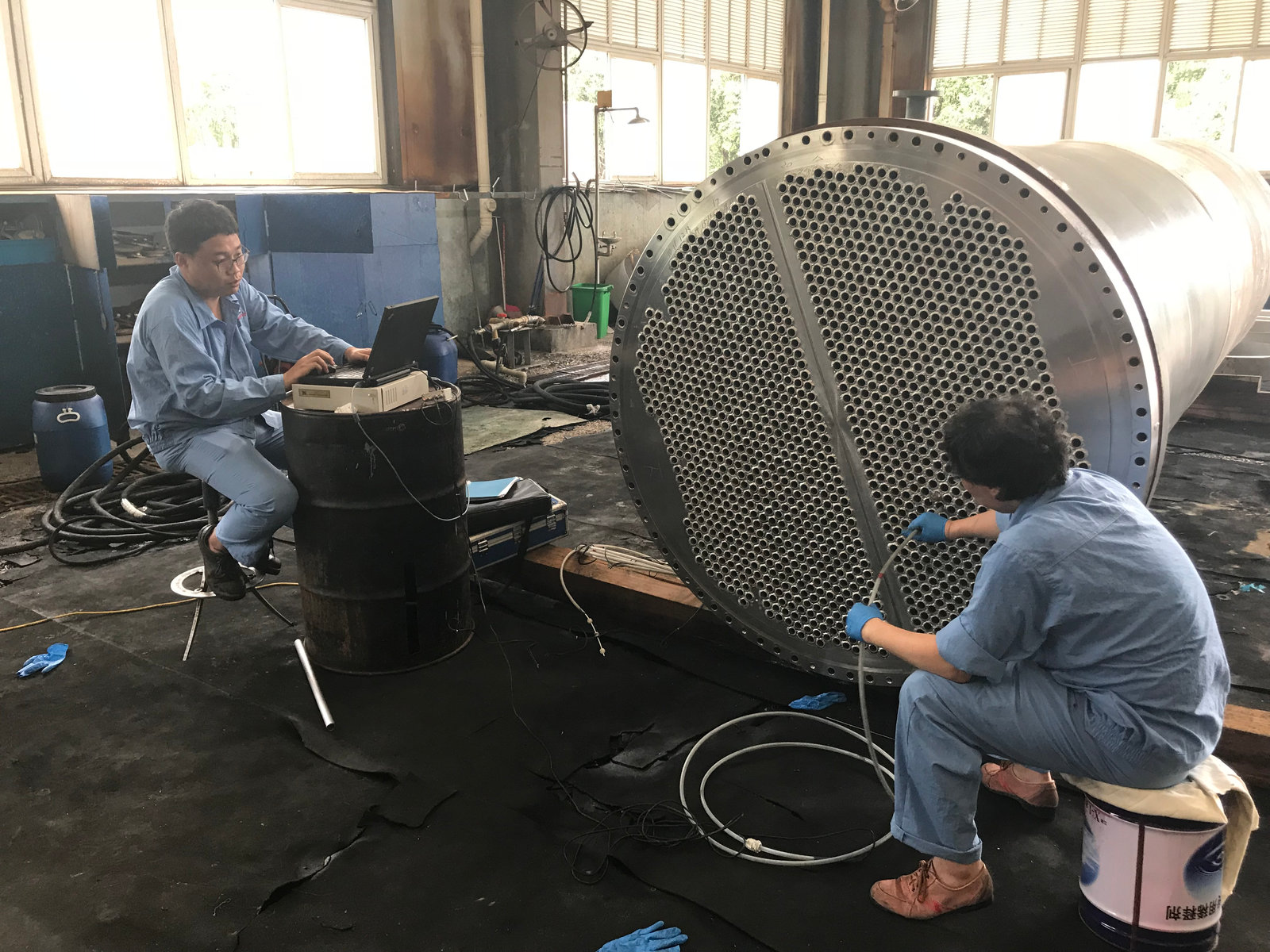

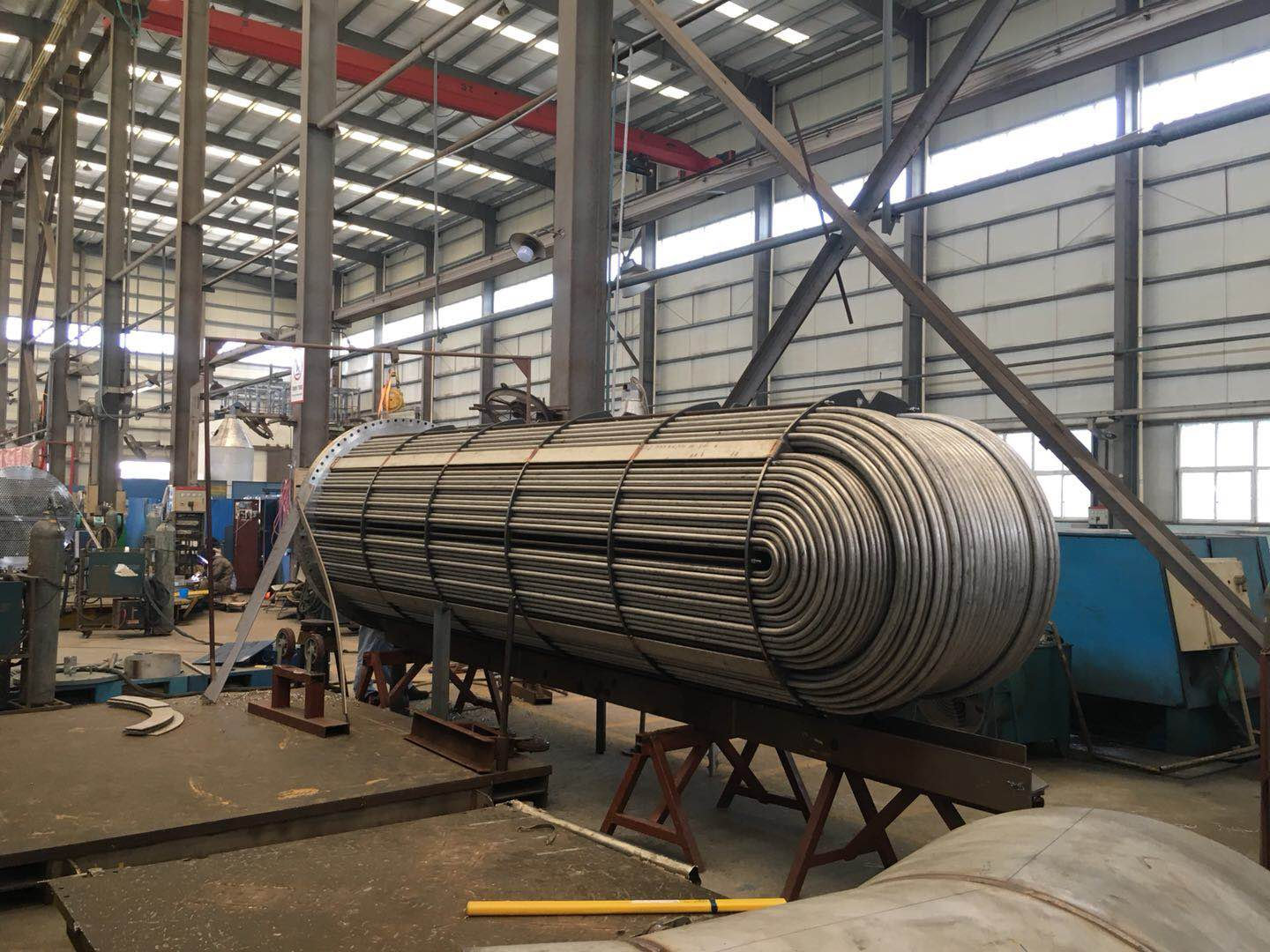

Heat exchanger tube bundles

Replacement bundles supplied against the approved exchanger drawing and material requirements; tube layout, baffles and tube-to-tubesheet joints form part of the review.

Piping and lined steelwork

Stainless, duplex and rubber-lined spools, flanges and fabricated assemblies coordinated with the plant line list and connection geometry.

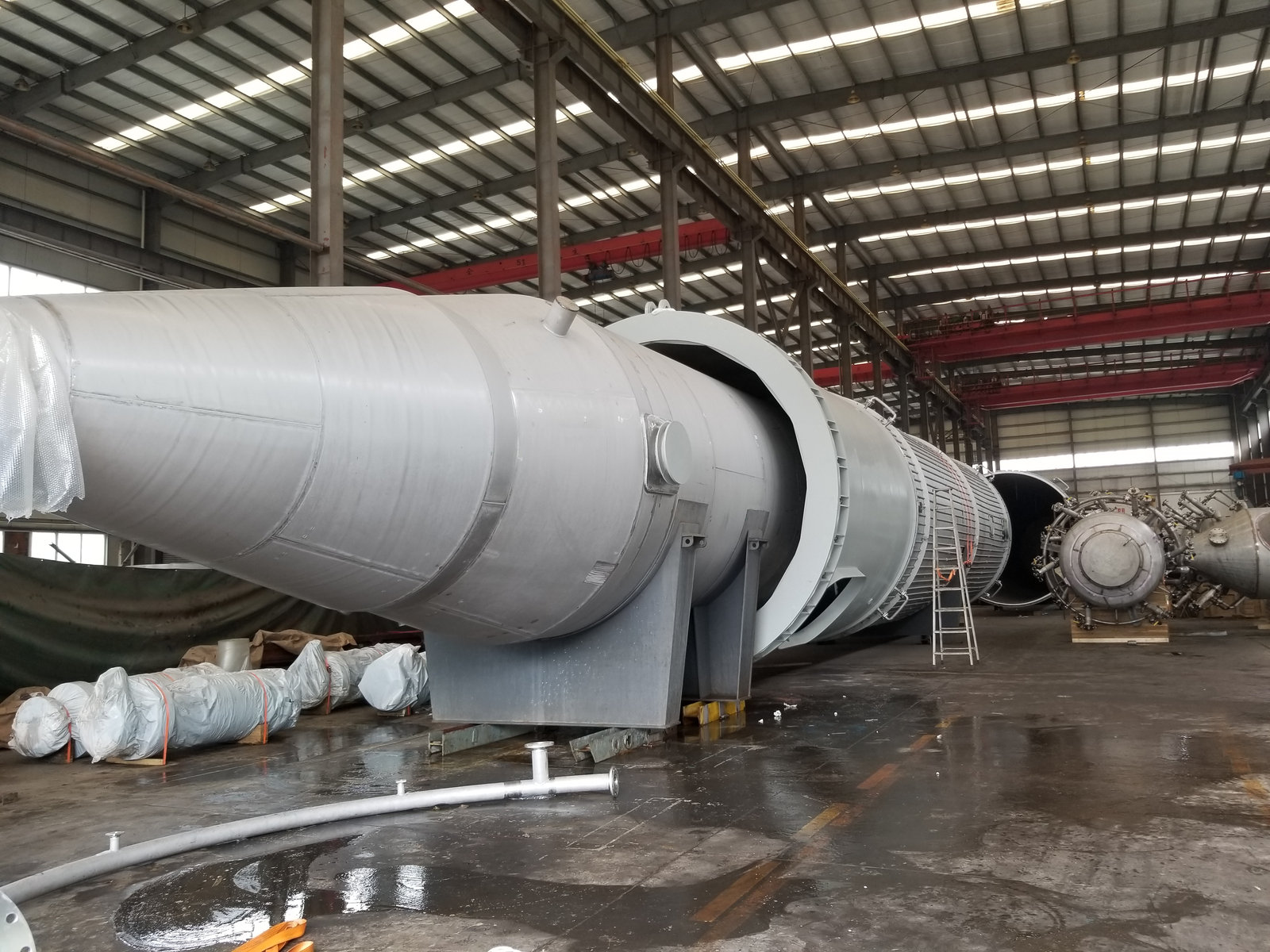

Plant fabrication packages

Platework, chutes, hoppers, structures and associated process components, packed for the agreed route and installation sequence.

02

Documented specifications and selection basis

These are documented product ranges and project examples. They help define an enquiry; the selected equipment is confirmed against its own duty, drawings and acceptance requirements. A historical shipment is not a statement of a shop’s current maximum capacity.

ItemSpecification and scope
Documented bundle quantityTwo stainless steel tube bundles for Minara, with a third-party inspection report dated 9 January 2019.
Inspection scope exampleMaterial records, dimensional checks, tube-to-tubesheet examination and witnessed hydrostatic testing are recorded for that bundle project.
Documented constructionCarbon and stainless tanks, duplex spools and rubber-lined steel piping are shown in the supply references.
Pressure and temperatureSpecified for the individual vessel and service; no common pressure-temperature envelope applies to all constructions.
Transport dimensionsEstablished from the finished arrangement and lifting plan; a shipping envelope is distinguished from equipment dimensions.

03

Service conditions and applicable standards

Supply the process datasheet and the governing code before the shop is selected. For a bundle replacement, include the existing shell and channel interfaces, tube material, tubesheet details, baffle arrangement and the condition of the removed bundle. For corrosive service, identify cleaning fluids and test-water restrictions as well as the normal process medium. Field welding, preservation and loading duties should be allocated explicitly.

ASME Section VIII is a pressure-vessel construction code; its certification requirements must be addressed when the order calls for a stamped vessel. The supply literature also refers to API construction requirements for applicable equipment. State the code, edition, design responsibility and required authorization in the enquiry. A historical inspection report is evidence for the item inspected, not a current certificate for every shop in a supply network.

04

Inspection and release documents

The inspection plan turns the purchase specification into manufacturing checkpoints. Before production, identify the drawing revision, material requirements, acceptance limits and required records. Separate mandatory hold points from progress observations so that an inspection visit happens while the work can still be checked. If the order includes a third-party witness, the attendance and release arrangements belong in the schedule.

For this product line, the review focuses on material certificates, approved welding and inspection requirements, dimensional interfaces, specified non-destructive examination, test procedure and the release documentation. The final document list is agreed with the order: material records, dimensional reports, applicable fabrication and test records, release information and packing identification. Changes or deviations are resolved against the approved specification before acceptance, with the responsible engineer involved where required.

05

Project references with measured scope

Two inspected stainless steel tube bundles for Minara

The Glencore project reference identifies two stainless steel tube bundles for Minara’s hot-acid heat exchanger in 2019. The third-party inspection report dated 9 January 2019 covers two tube bundles, with material-record review, dimensional checks, tube-to-tubesheet inspection and witnessed hydrostatic testing among the stated activities. The example concerns replacement bundles and their inspection scope, not the thermal design of an entire acid plant.

View this project reference

15,600 kg mill cover shipped to Chile

SBC’s packing list dated 15 January 2019 records one mill cover shipped to Chile through Wiedco. The listed net weight is 15,600 kg, gross weight 17,100 kg and package size 3.5 × 3.5 × 1.55 m. This is an actual shipment reference for a replacement mill component. Package size does not establish the casting’s finished diameter, and the record is not a maximum foundry or machining capacity.

View this project reference

06

What to send for a quotation

Send process datasheet, design pressure and temperature, corrosion allowance, material specification, equipment and nozzle drawings, code and stamp requirements, inspection hold points and shipping restrictions. Include quantities, the required date at site, the destination port or plant and the preferred delivery terms. If you are replacing existing equipment, add photographs showing connections, access and the failure or wear pattern. Mark dimensions that have been measured on site and identify any values still awaiting confirmation.

For a comparable quotation, define the battery limits: equipment, bought-out components, supports, drawings, inspection, packing and transport. Ask for technical exceptions and exclusions alongside the price. This makes it possible to compare proposals on the same scope and prevents an omitted inspection, connection or document from becoming a site problem. A preliminary budget can proceed with stated assumptions; manufacture follows the approved final requirements.

Send your drawing and service conditions

07

Buyer questions

Can you supply a replacement bundle for an existing exchanger?

Yes, with the exchanger drawing or a verified dimensional survey. Confirm the tube layout, tubesheet interfaces, baffles, material and joining requirements before manufacture. The Minara reference shows two inspected bundles; a new thermal-performance guarantee requires its own design basis and agreed responsibility.

What information do you need to quote?

Send process datasheet, design pressure and temperature, corrosion allowance, material specification, equipment and nozzle drawings, code and stamp requirements, inspection hold points and shipping restrictions. Include the required delivery date, destination and inspection requirements. Identify which information is preliminary and which drawing is approved. We can then return a scoped proposal with technical assumptions, exclusions, documentation and the proposed delivery basis, rather than a price based only on a product name.

How is the inspection scope agreed?

Use an item-specific inspection and test plan. For this equipment it should address material certificates, approved welding and inspection requirements, dimensional interfaces, specified non-destructive examination, test procedure and the release documentation. Identify hold and witness points before production and link the final records to the equipment marks. Where independent inspection is required, agree the inspector and attendance scope before the relevant manufacturing stage.

Can you use the material or standard named in our specification?

Yes, subject to review of the actual item and manufacturing route. Name the standard and edition, material grade, required condition and acceptance criteria in the enquiry. If an alternative is proposed, the difference is stated for agreement before manufacture. Material equivalence, equipment design and manufacturer certification are separate questions and should be resolved separately.

What is the lead time and is the equipment in stock?

Delivery is quoted for the particular order. The schedule depends on drawing approval, material availability, manufacturing, inspection, packing and transport. Give the required site date and identify shutdown constraints so the proposal can separate the production and shipping stages. The examples on this page describe supply capability and past work; they are not an offer of stock or a fixed catalogue lead time.

Can you coordinate packing and shipment to our site?

Yes, with the shipping scope and destination agreed in the order. Confirm package dimensions and weights, lifting arrangements, preservation, unloading access and any assembly needed after delivery. Large equipment may travel in sections or require a special shipping arrangement. Packing dimensions and gross weights are identified separately from the dimensions and net weight of the equipment.

Can I use a past project as the specification for a new order?

Use the reference to identify comparable equipment, then specify the new duty. A recorded quantity, capacity or shipping weight applies to that project and is not a universal operating limit. Where a reference comes from our sister company, the attribution appears beside the case. Send your current operating conditions and interfaces so the new proposal can establish the correct construction and acceptance basis.

08

Discuss your equipment

Send your drawing, operating conditions and required site date. SBCCO-China will review the supply scope, materials, inspection and delivery requirements.
