SBCCO-China supplies PTFE- and PFA-lined valves, piping components and associated corrosion-resistant equipment from China. The liner, metal housing, joints and operating envelope are selected together. The enquiry must state the chemical medium, concentration, temperature, pressure, vacuum and cleanliness requirements so that the proposed construction can be assessed for the actual service.

01

Supply scope

Fluoropolymer selection is more than choosing a chemical-resistance label. A lined valve, a loose-lined pipe and a coated vessel are different products. Their lining support, joint geometry, inspection and temperature-pressure limits cannot be transferred from one to another. Confirm the actual item datasheet, fabrication method and chemical suitability before accepting a general catalogue rating.

Lined valves

PFA-lined gate, globe and ball valves and PTFE-lined butterfly constructions, with the wetted path, seat and stem seals specified for the duty.

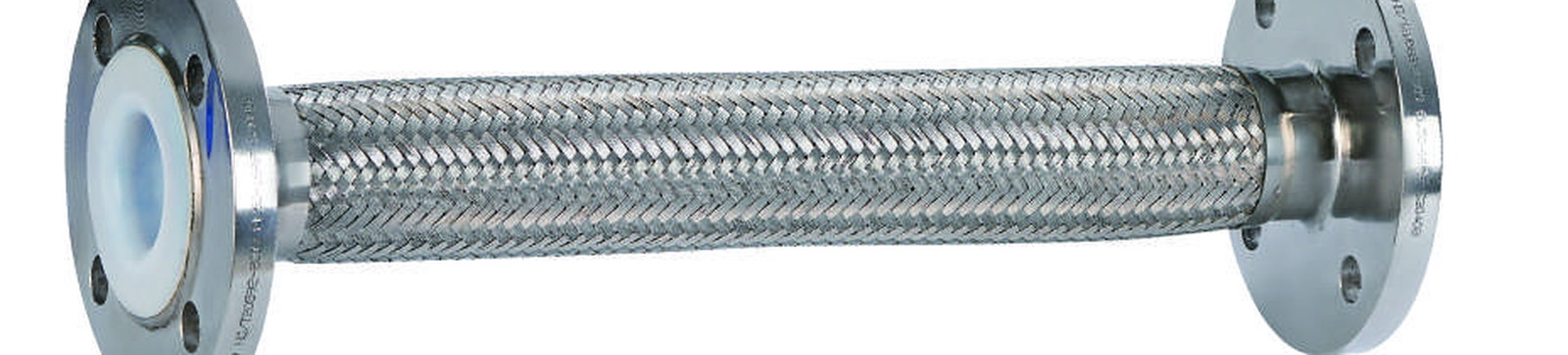

Pipe spools and fittings

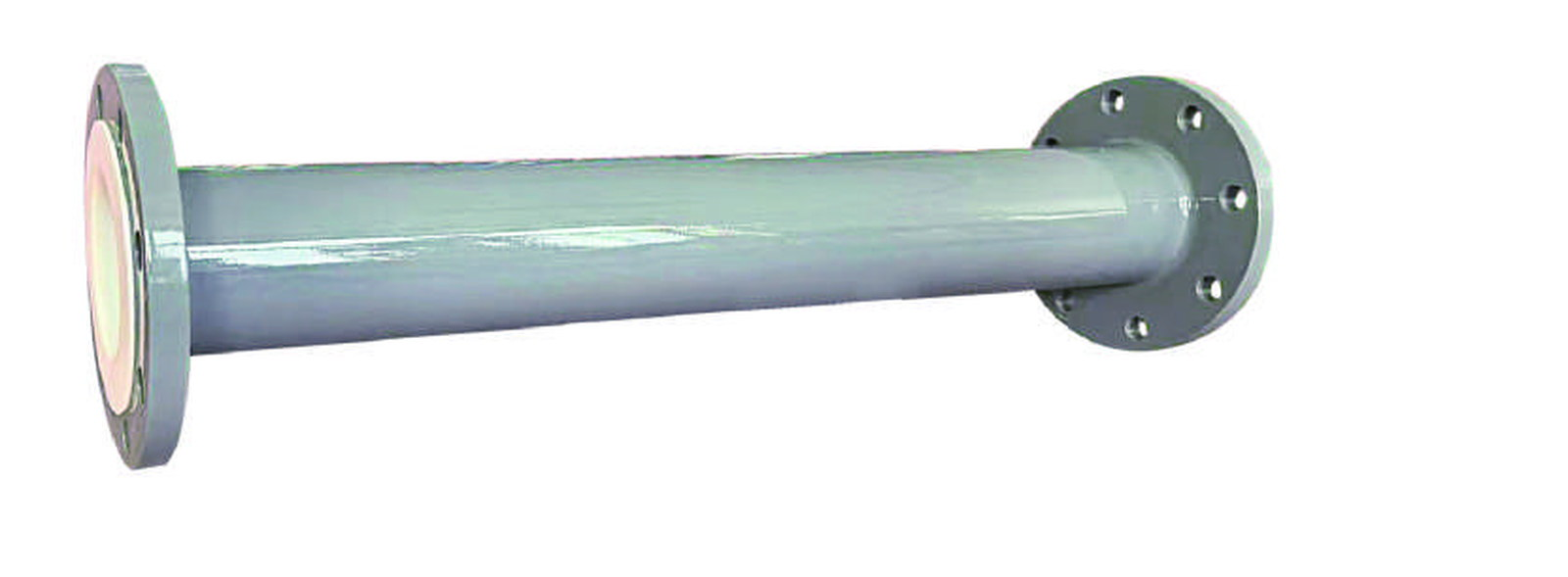

Lined straight spools, elbows, tees, reducers and flanged connections selected against the line drawing and confirmed component datasheets.

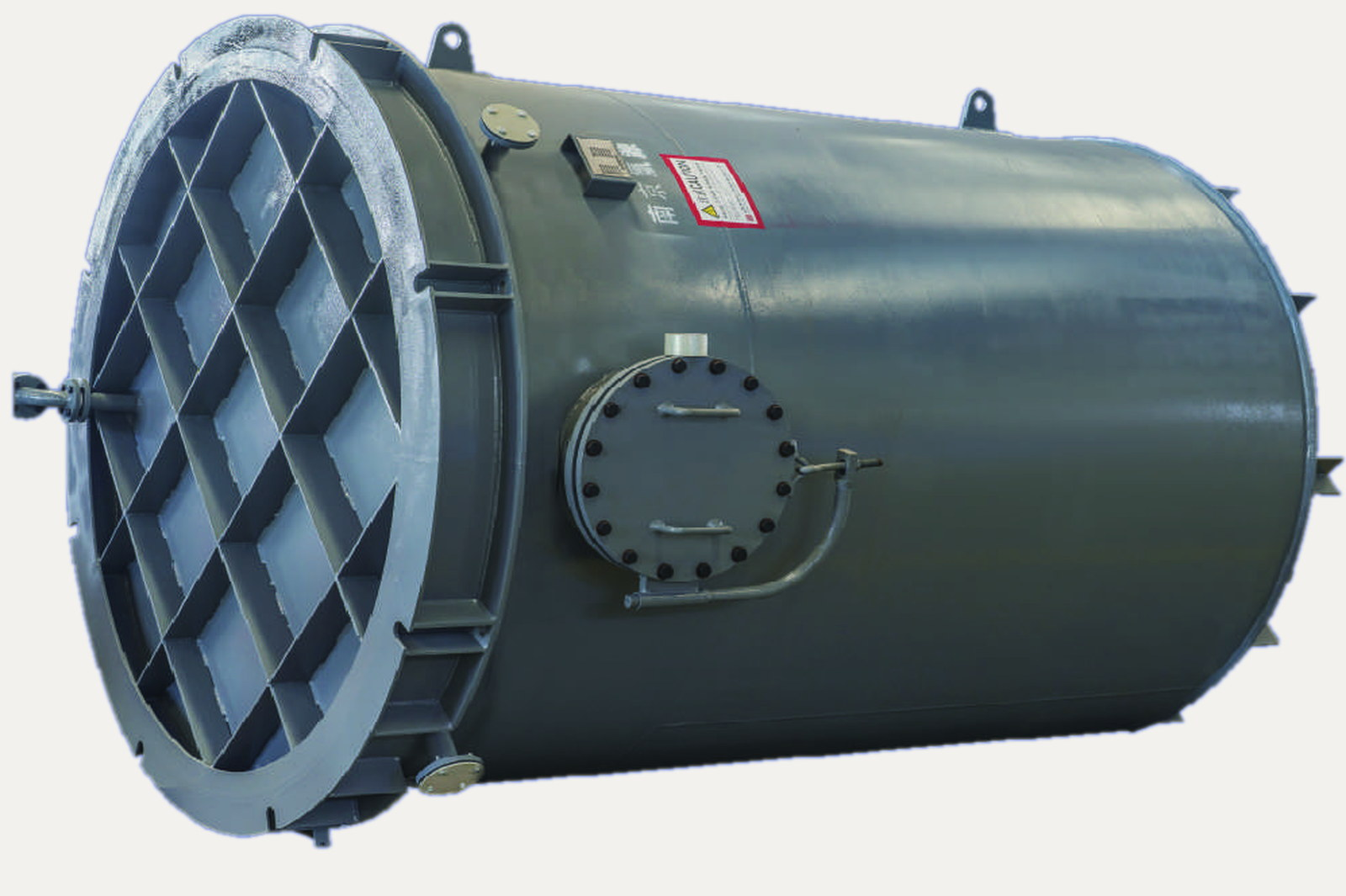

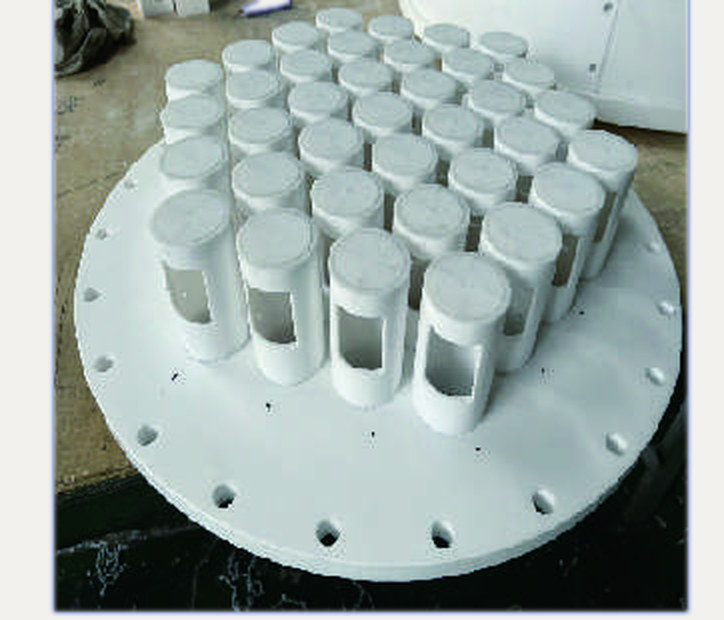

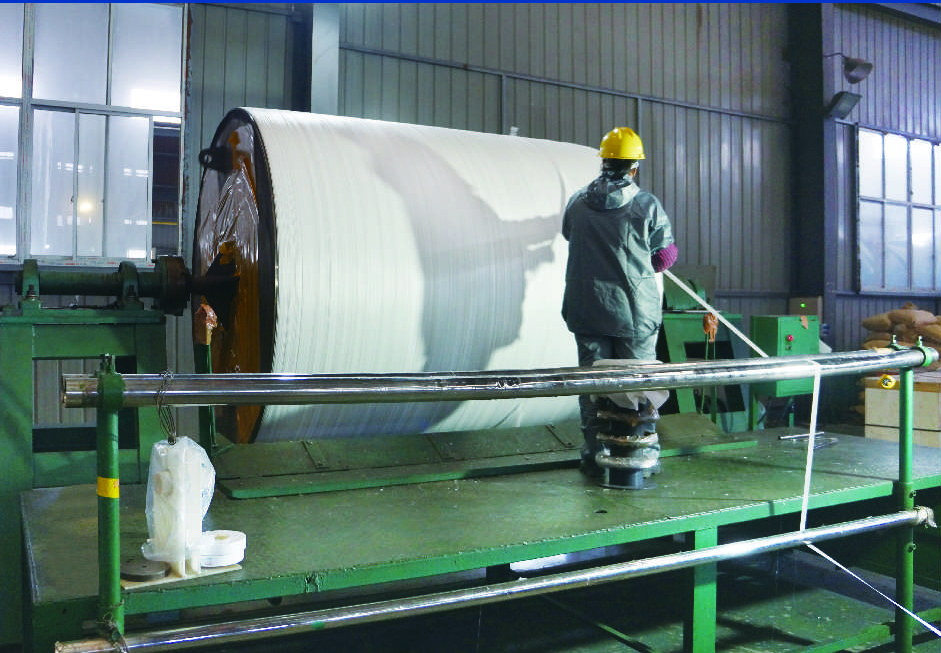

Vessel and process interfaces

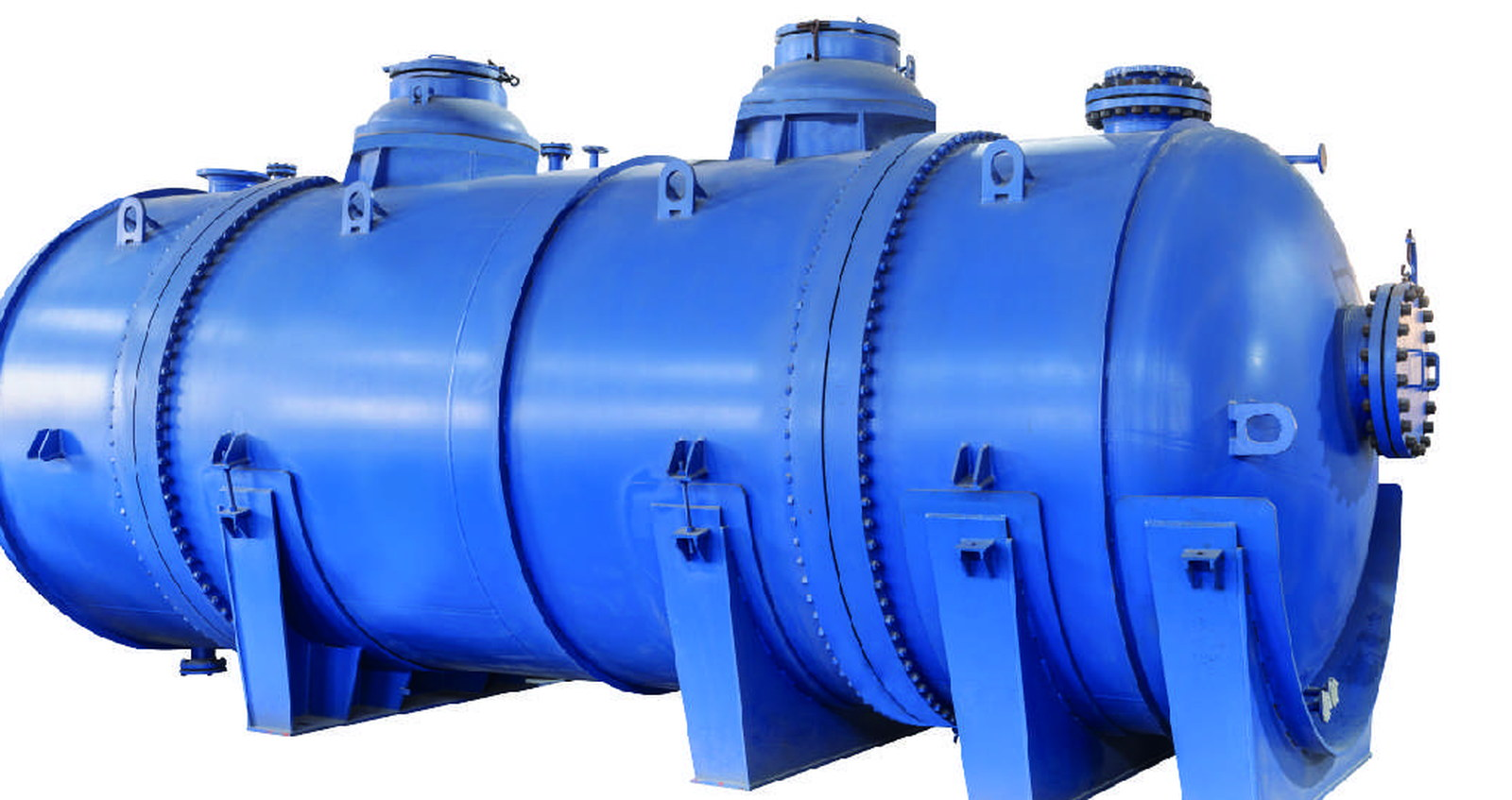

Lined nozzles, dip pipes and associated components coordinated with the equipment supplier and the approved lining arrangement.

Inspection and package coordination

Material identification, lining checks, dimensional interfaces and the specified tests organized as an agreed item-by-item inspection plan.

02

Documented specifications and selection basis

These are documented product ranges and project examples. They help define an enquiry; the selected equipment is confirmed against its own duty, drawings and acceptance requirements. A historical shipment is not a statement of a shop’s current maximum capacity.

ItemSpecification and scope
Ball-valve example size rangeThe lined ball-valve datasheet lists nominal sizes from ½ to 10 in. This is one construction, not the range of every lined product.
Example valve linerPFA, PTFE and FEP options; liner thickness greater than 3 mm is stated for that ball-valve construction.
Example valve temperature−20 to +150 °C in the same datasheet; chemical duty, pressure and selected materials still require confirmation.
Example valve body materialsWCB, CF8, CF8M and titanium are listed options, selected for the item and service.
Historical lined-valve packagePASAR’s 2019 order specifies 20 PFA- or PTFE-lined valves in nominal sizes from 50 to 250 mm.

03

Service conditions and applicable standards

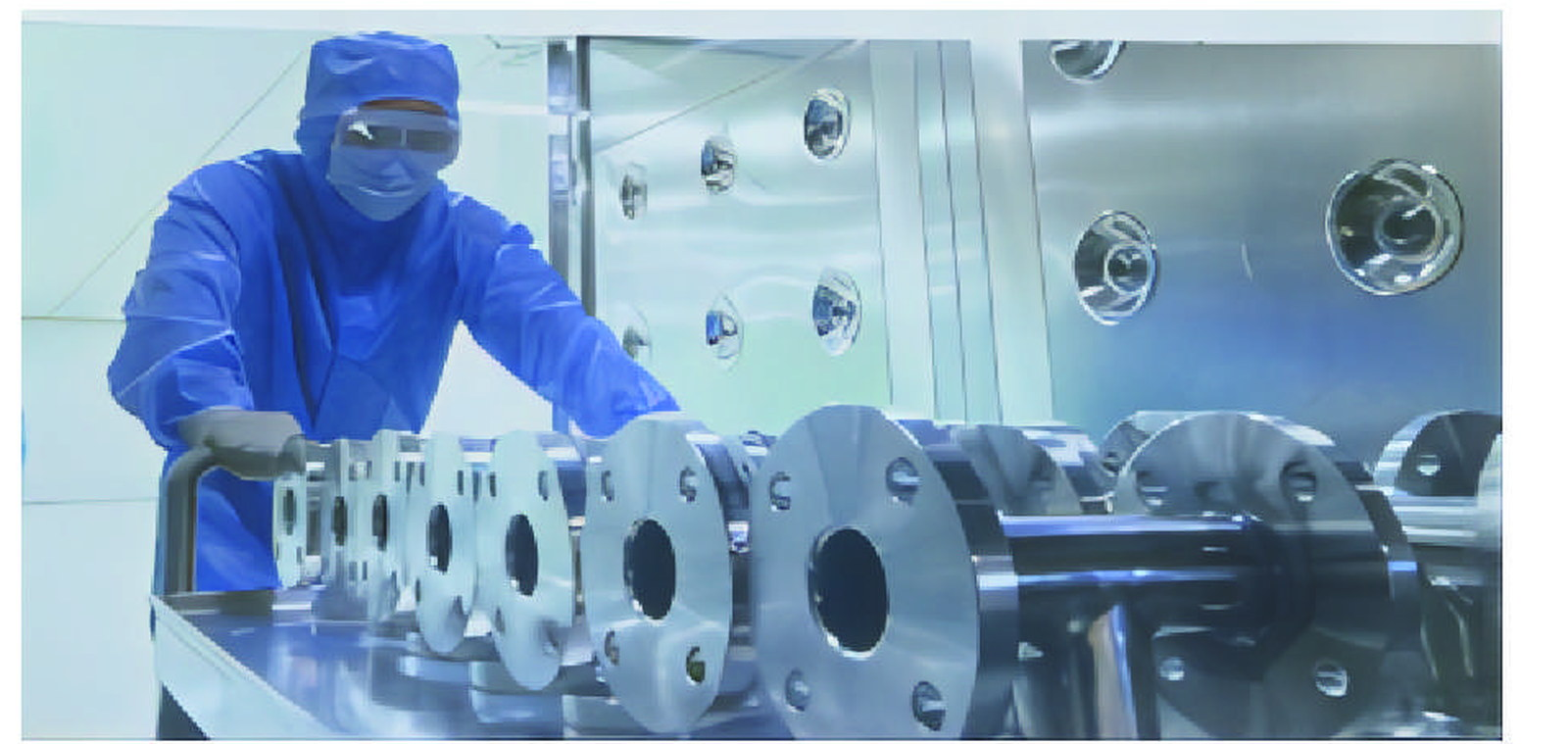

Provide the complete chemical composition, including contaminants, cleaning solutions and the temperature during each operating step. State whether vacuum can occur during draining, cooling or pump operation. Agree the lining process and how continuity, thickness, joints and venting will be checked for that construction. Resin thermal properties or a brochure melting point are not an equipment service-temperature rating. High-purity requirements need their own material and cleanliness specification.

ASTM F1545 covers factory-made plastic-lined ferrous pipe, fittings and flanges. Its scope does not establish chemical suitability for every liner and does not include plastic-coated products. Specify it only for applicable piping items, alongside the lining material and operating conditions. Valve construction and flange requirements are established separately; a common polymer does not place all equipment under one standard.

04

Inspection and release documents

The inspection plan turns the purchase specification into manufacturing checkpoints. Before production, identify the drawing revision, material requirements, acceptance limits and required records. Separate mandatory hold points from progress observations so that an inspection visit happens while the work can still be checked. If the order includes a third-party witness, the attendance and release arrangements belong in the schedule.

For this product line, the review focuses on housing and liner identification, specified liner thickness, flange-face condition, dimensions and agreed continuity, pressure or vacuum tests at a voltage or pressure appropriate to the item. The final document list is agreed with the order: material records, dimensional reports, applicable fabrication and test records, release information and packing identification. Changes or deviations are resolved against the approved specification before acceptance, with the responsible engineer involved where required.

05

Project references with measured scope

PASAR order for 20 lined valves

PASAR’s August 2019 purchase order to SBC specifies 20 lined valves across ten order lines: 16 PFA-lined gate valves, two PFA-lined globe valves and two PTFE-lined butterfly valves. Nominal sizes in that order run from 50 to 250 mm. This is the recorded order scope, supported by the PASAR supply reference; it is not a pressure-temperature rating or a new delivery promise.

View this project reference

06

What to send for a quotation

Send chemical composition and concentration, contaminants, cleaning cycle, normal and upset temperature, pressure and vacuum, line geometry, flange details, cleanliness criteria and required lining tests. Include quantities, the required date at site, the destination port or plant and the preferred delivery terms. If you are replacing existing equipment, add photographs showing connections, access and the failure or wear pattern. Mark dimensions that have been measured on site and identify any values still awaiting confirmation.

For a comparable quotation, define the battery limits: equipment, bought-out components, supports, drawings, inspection, packing and transport. Ask for technical exceptions and exclusions alongside the price. This makes it possible to compare proposals on the same scope and prevents an omitted inspection, connection or document from becoming a site problem. A preliminary budget can proceed with stated assumptions; manufacture follows the approved final requirements.

Send your drawing and service conditions

07

Buyer questions

Can lined equipment be used under vacuum?

Yes, when the selected construction is specifically evaluated for the vacuum and temperature together. Liner support, attachment, thickness and geometry matter. State the worst operating condition and require the proposed construction and test basis in the quotation; a positive-pressure rating alone is not a vacuum rating.

What information do you need to quote?

Send chemical composition and concentration, contaminants, cleaning cycle, normal and upset temperature, pressure and vacuum, line geometry, flange details, cleanliness criteria and required lining tests. Include the required delivery date, destination and inspection requirements. Identify which information is preliminary and which drawing is approved. We can then return a scoped proposal with technical assumptions, exclusions, documentation and the proposed delivery basis, rather than a price based only on a product name.

How is the inspection scope agreed?

Use an item-specific inspection and test plan. For this equipment it should address housing and liner identification, specified liner thickness, flange-face condition, dimensions and agreed continuity, pressure or vacuum tests at a voltage or pressure appropriate to the item. Identify hold and witness points before production and link the final records to the equipment marks. Where independent inspection is required, agree the inspector and attendance scope before the relevant manufacturing stage.

Can you use the material or standard named in our specification?

Yes, subject to review of the actual item and manufacturing route. Name the standard and edition, material grade, required condition and acceptance criteria in the enquiry. If an alternative is proposed, the difference is stated for agreement before manufacture. Material equivalence, equipment design and manufacturer certification are separate questions and should be resolved separately.

What is the lead time and is the equipment in stock?

Delivery is quoted for the particular order. The schedule depends on drawing approval, material availability, manufacturing, inspection, packing and transport. Give the required site date and identify shutdown constraints so the proposal can separate the production and shipping stages. The examples on this page describe supply capability and past work; they are not an offer of stock or a fixed catalogue lead time.

Can you coordinate packing and shipment to our site?

Yes, with the shipping scope and destination agreed in the order. Confirm package dimensions and weights, lifting arrangements, preservation, unloading access and any assembly needed after delivery. Large equipment may travel in sections or require a special shipping arrangement. Packing dimensions and gross weights are identified separately from the dimensions and net weight of the equipment.

Can I use a past project as the specification for a new order?

Use the reference to identify comparable equipment, then specify the new duty. A recorded quantity, capacity or shipping weight applies to that project and is not a universal operating limit. Where a reference comes from our sister company, the attribution appears beside the case. Send your current operating conditions and interfaces so the new proposal can establish the correct construction and acceptance basis.
